St. Bartholomew's, Armley

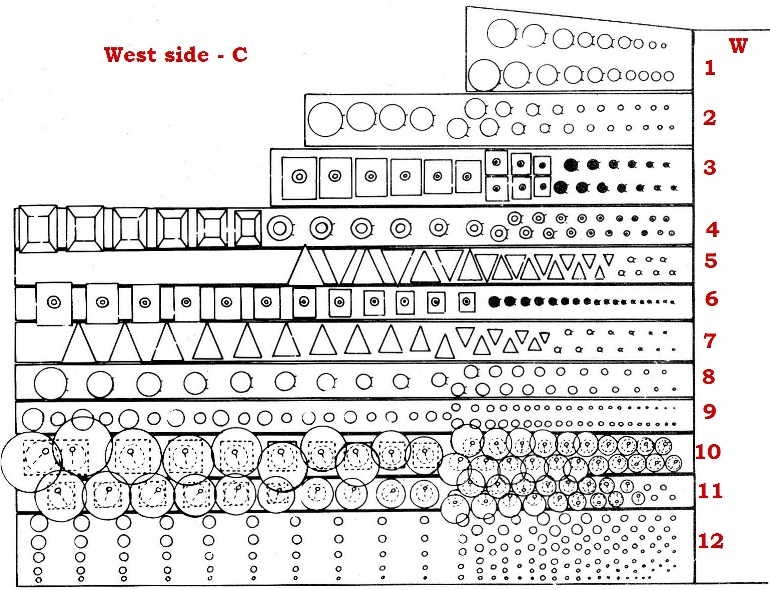

PLAN OF GREAT ORGAN  (WEST SIDE)




  W  Walkway

  1  Sub Principal  16ft (metal)

                                       Bottom 2 octaves stood off.
                       Shown as 1A & 1B on Pedal Plan (wood)


2  Major Principal  8ft (metal)

                                         Bottom 2 octaves stood off.
                               Shown as 2A on Pedal Plan (wood)

  3  Bordun  16ft (metal & wood)

                                        Bottom octave stood off.
                              Shown as 3A on Pedal Plan (wood)

  4  Gemshorn  8ft (metal & wood)

  5  Hohl Flӧte  8ft (metal & wood)

  6  Gedact  8ft (metal & wood)

  7   Hohl Flӧte  4ft (metal & wood)

  8   Octave (metal)

  9  Rausch Quinte 2 fach (metal)

10  Tuba  16ft (metal)

11  Trompete  8ft (metal)

Top 7 notes are flue pipes
12  Mixtur 5 fach (metal)

                                                  Top 6 notes 4 ranks only
