St. Bartholomew's, Armley

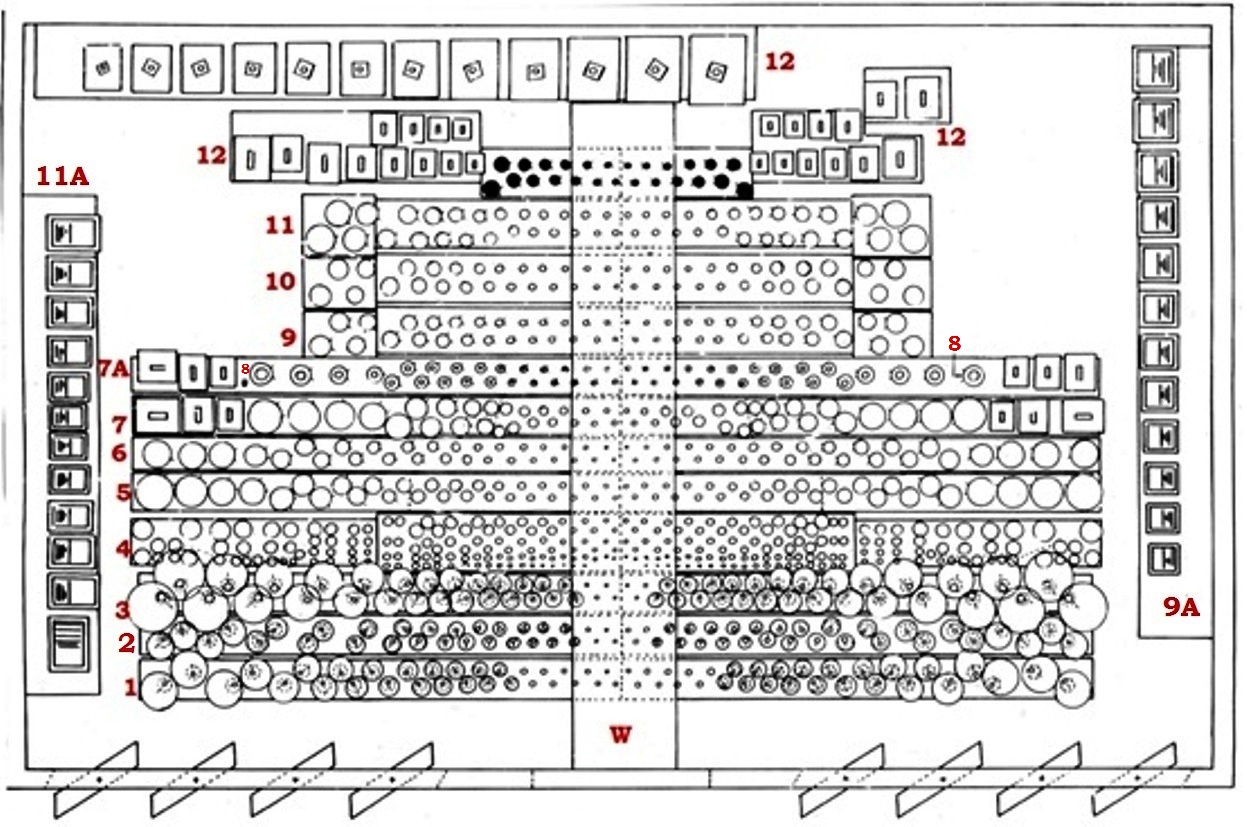

PLAN OF THE SWELL ORGAN








12  Bordun  16ft   (metal & wood)

11 & 11A  Geigen Principal  8ft
                                    (metal & wood)
10  Gamba  8ft      (metal)
        grooved to Geigen Principal


9 & 9A  Salicional  8ft
                                    (metal & wood)


8  Celeste  8ft       (metal)
       grooved to Fl.Trav. 8ft
       Stop Knob is engraved 'Rohr Fl
ӧte'


7 & 7A  Flauto Traverso  8ft
                                    (metal & wood)
        bottom octave stopped pipes


6  Octave  4ft      (metal)


5  Flauto Traverso  4ft    (metal)


4  Cymbel  4 fach             (metal)
       top 5 notes 3 ranks only


3  Horn  8ft            (metal)
       top 7 notes are flue pipes
       top 12 reed pipes are harmonic


 2  Oboe  8ft          (metal)
      top 7 notes are flue pipes


1  Clarine  4ft      (metal)
       top 19 notes are flue pipes
       top 12 reed pipes are harmonic


W  Walkway
